Wire form manufacturing at the micron scale poses a number of unique challenges. As wire diameters shrink, precision tolerance control becomes increasingly crucial. Even the smallest variance can compromise the functional performance of the end product, if not render it entirely incompatible.

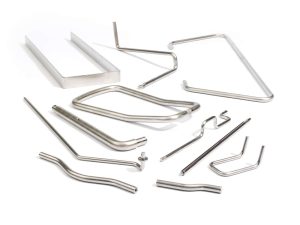

At HyTech Spring & Machine, our micro wire form products typically involve precision components specifying diameters as fine as 0.0005”, along with geometries measured in hundredths of an inch. Meeting such tight requirements with the repeatability expected in strict industries such as medical and aerospace manufacturingdemands expertise that extends far beyond standard wire forming processes.

Regardless of industry or end product application, HyTech’s micro wire form solutionsdemonstrate how specialized manufacturing precision translates directly into superior product performance and reliability.

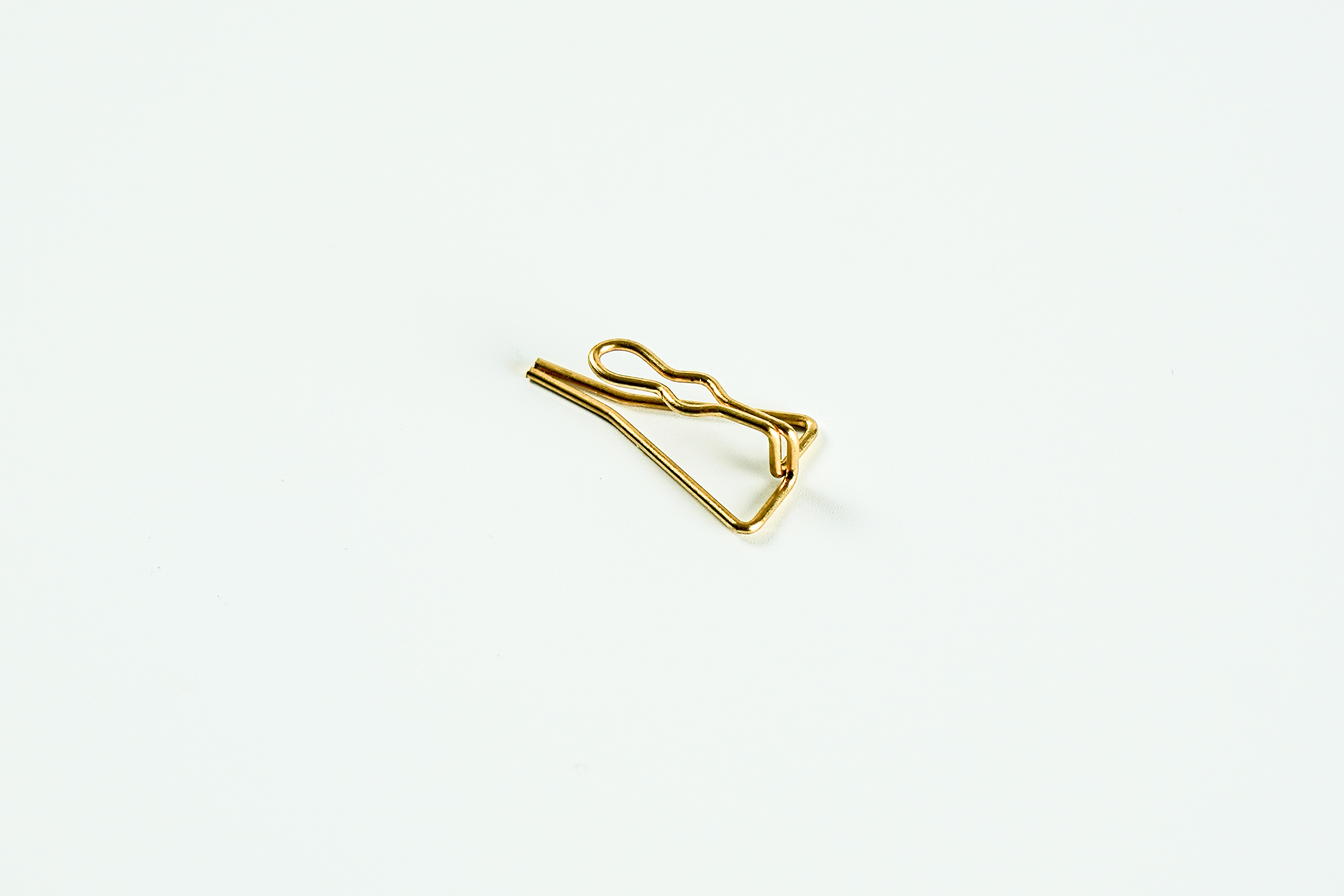

Manufacturing Precision Wire Form Products as Fine as 0.0005”

Manufacturing at the micro scale presents challenges that conventional wire forming operations rarely encounter – hence the need for specialized micro manufacturing expertise.

To put the scale into perspective, a wire diameter of 0.0005” is finer than a human hair. At this scale, surface irregularities, material inconsistencies, and subtle temperature variations become high-impact variables requiring extraordinary control.

Traditional wire forming tolerancing rules require significant refinement at micro scales. HyTech has engineered proprietary inspection and control systems specifically designed for micro wire components. Each project receives a customized tolerance strategy that balances functionality requirements, manufacturing feasibility, and cost considerations. Our approach recognizes that ultra-fine wire exhibits unique mechanical properties and behaves differently under forming loads compared to standard-diameter materials.

Optimized Materials for Micro Tolerances

Material selection at the micro scale likewise demands careful evaluation. We work with a huge range of premium stainless steel alloys (such as 302/304 and 17-7 SST) for applications requiring corrosion resistance, Nitinol for medical devices requiring superelastic or shape-memory characteristics, high-performance alloys like MP35N for cardiac devices, and specialty non-ferrous materials for applications with unique thermal or electrical requirements.

At micro scales, material consistency becomes critical: even microscopic inclusions or subtle hardness variations can compromise manufacturability and component reliability.

Learn more in our guide: How to Choose the Right Wire Forming Material for Your Application

Precision CNC Forming Technology

Our CNC forming systems don’t simply bend wire, but execute precise three-dimensional geometries with repeatability and accuracy that transforms design concepts into manufactured components. Multi-axis control, advanced servo systems, and closed-loop feedback enable complex forming operations while maintaining tight dimensional tolerances.

Success requires sophisticated feed rate optimization, as the speed at which ultra-fine wire moves through dies significantly impacts component quality. We’ve developed proprietary feed rate protocols for different materials, wire diameters, and geometric configurations. Tooling precision is equally critical. Even microscopic imperfections in forming dies directly impact final component geometry and surface quality. Our in-house tooling design and build capabilities ensure we maintain the highest standards of die precision and consistency.

Real-time quality monitoring through automated vision inspection and dimensional measurement systems verifies critical dimensions throughout manufacturing, detecting surface irregularities and flagging components that fall outside specification before they advance in our process.

CNC Grinding for Complex Geometries and Wire Ends

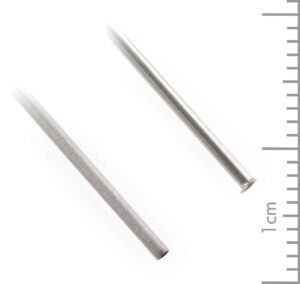

The journey from formed wire to finished component often requires sophisticated secondary operations. Our CNC grinding capabilities include centerless grinding for consistently straight, precisely finished wire with uniform diameter, cylindrical and profile grinding for complex geometries, and precision end finishing for shaped wire ends.

At the micron level, process variables including wheel speed, feed rate, coolant type and temperature, and dressing frequency all influence final component quality. We maintain strict process control and statistical monitoring to ensure consistent results across production runs.

Precision Wire Manufacturing at the Smallest Scales

Micro wire forms represent precision manufacturing at the edge of technological capability. Success demands deep expertise in material science, precision forming technology, advanced finishing capabilities, rigorous quality systems, and collaborative engineering.

For more than 35 years, HyTech Spring & Machine has invested in the specialized capabilities and proprietary processes required to excel in micro wire form manufacturing. When your application demands micro wire forms engineered to the highest standards, HyTech brings decades of expertise and an uncompromising commitment to precision to your end products.
